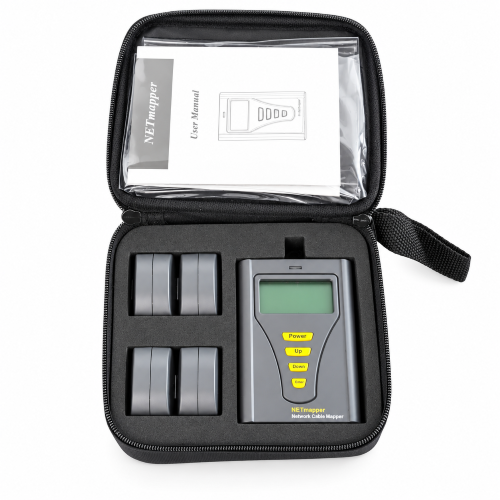

NETmapper Network Cable Tester & LAN Mapper 256850

S

Inactive Network (Offline):

Cable Continuity Test: Open, Short, Reversed, Crossed, Split Pairs, Miss-Wire, and Shield

Wire Map (Pin-to-Pin): Cable Pin Configuration (Cable Pin-Out)

Twisted Pair Visual Display

4 Remote Terminator For Testing and Cable Identification

Tone Generator: 1 KHz Tone on All Pins, Distinct Tones with 2 Modes (Single or Dual Tone Mode)

TDR Technology

Port Finder Function: Determine Corresponding Cable or Socket Connected to the Hub, Switch, or Router

Cable Length Test: Measures Cable Length Without Remote Terminator Needed and 2 User Defined Measurement (Meter or Feet)

Self–Calibrating Function: For Measuring Accuracy For Testing Length of Non–Standard Cables

Telephone Line Testing: Display Voltage and Polarity

Active Network (Online):

Displays Port Status: Identifies Speed Up To Giga (10/100/1000)

Ping Default Router, DNS Server and IP Adress or User Defined Devices

Scans and Lists All The PC Host With IP Address and Computer Host Name or MAC Address

PC Host Service Detection: HTTP/Telnet/DHCP/FTP and SNMP Services

POE Detection: Displays Pair and Voltage of Power Supplied
